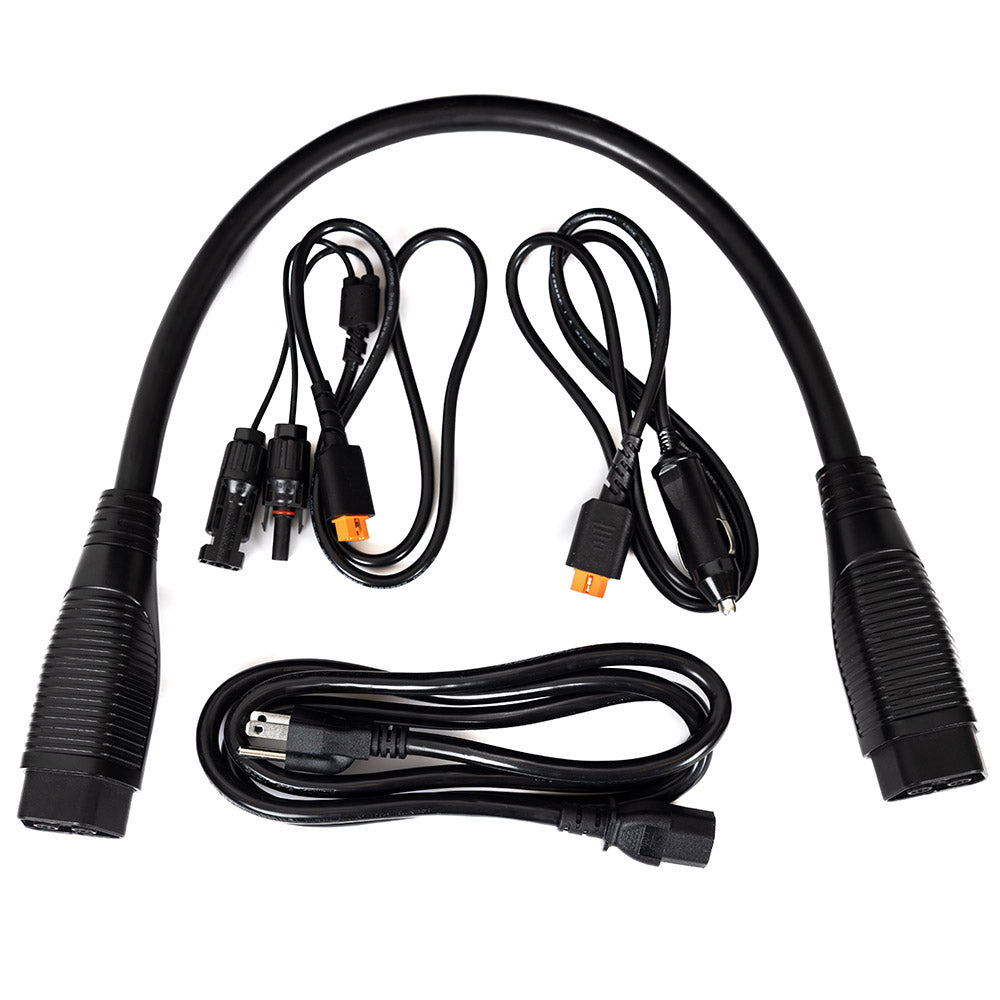

Grid Doctor 3300 Cable Bundle
Bundle Includes:
- Grid Doctor 3300 AC Charging Cable
- Grid Doctor 3300 XT60-MC4 Solar Charging Cable
- Grid Doctor 3300 XT60-Car Charging Cable
- Grid Doctor Smart Expansion Cable

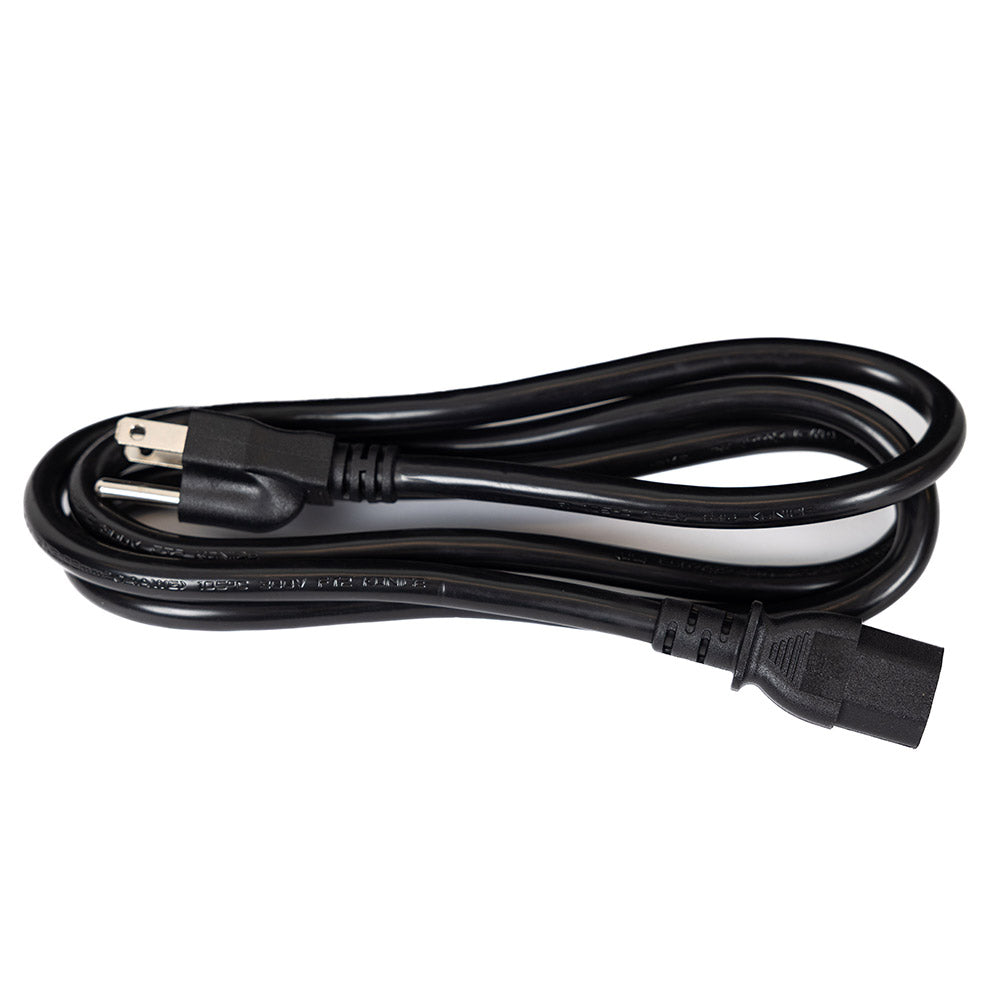

Grid Doctor 3300 AC Charging Cable Details
- Connects the Grid Doctor 3300 to an AC wall outlet
- Efficiently charges the Grid Doctor 3300
- Rated for 100-120 Volts at 60Hz and 15A
- 1800W Quick Charge / 600W Slow Charge
- Wire gauge: 14 AWG
- Length: 60 inches
- Weight: 0.18 lbs

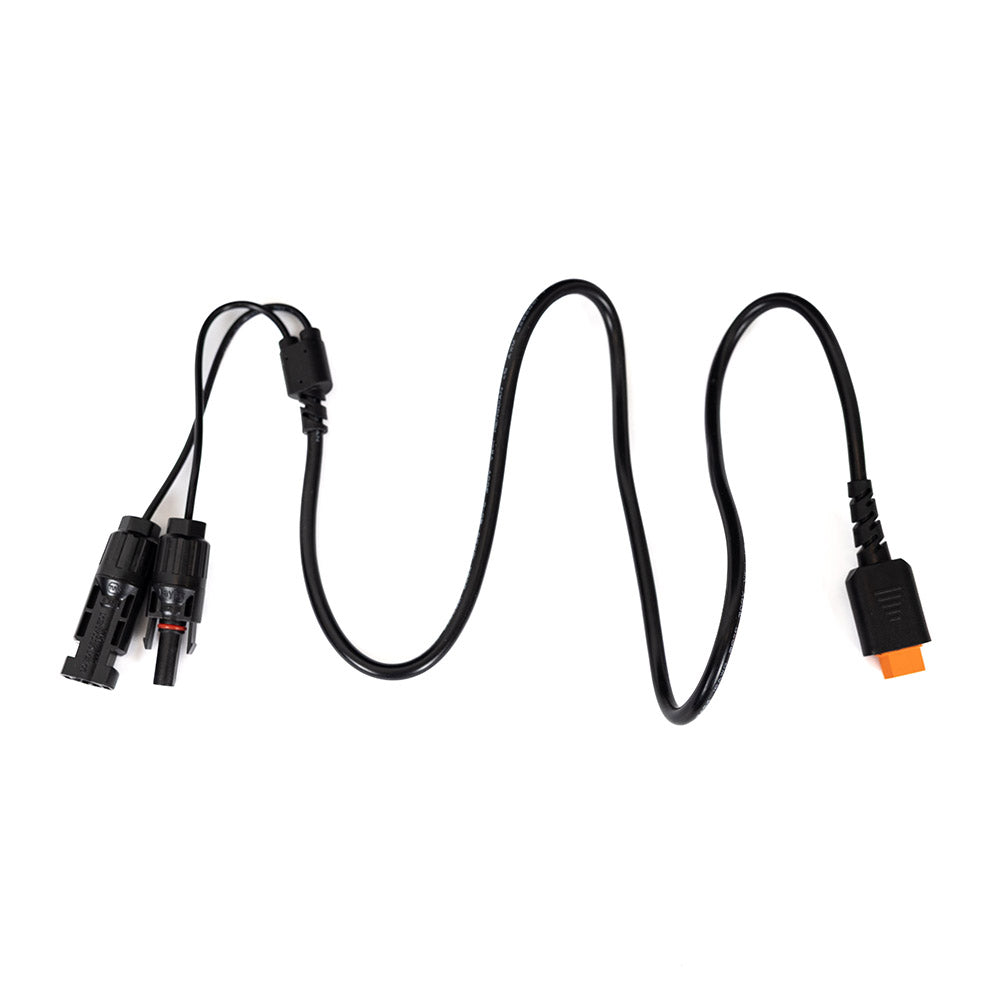

Grid Doctor 3300 XT60-MC4 Solar Charging Cable Details
- Connects the Grid Doctor 3300 to one or more solar panels
- Efficiently charges the Grid Doctor 3300
- Can also be used to charge GD3300XP Expansion Batteries
- Rated for 12-120V at 15A
- 1000W Max
- Connectors: Male XT60 connector on one end (connects to the Grid Doctor) and split male and female MC4 connectors on the other end (connect to the solar panel(s))
- Wire gauge: 14 AWG
- Length: 40 inches
- Weight: 0.18 lbs

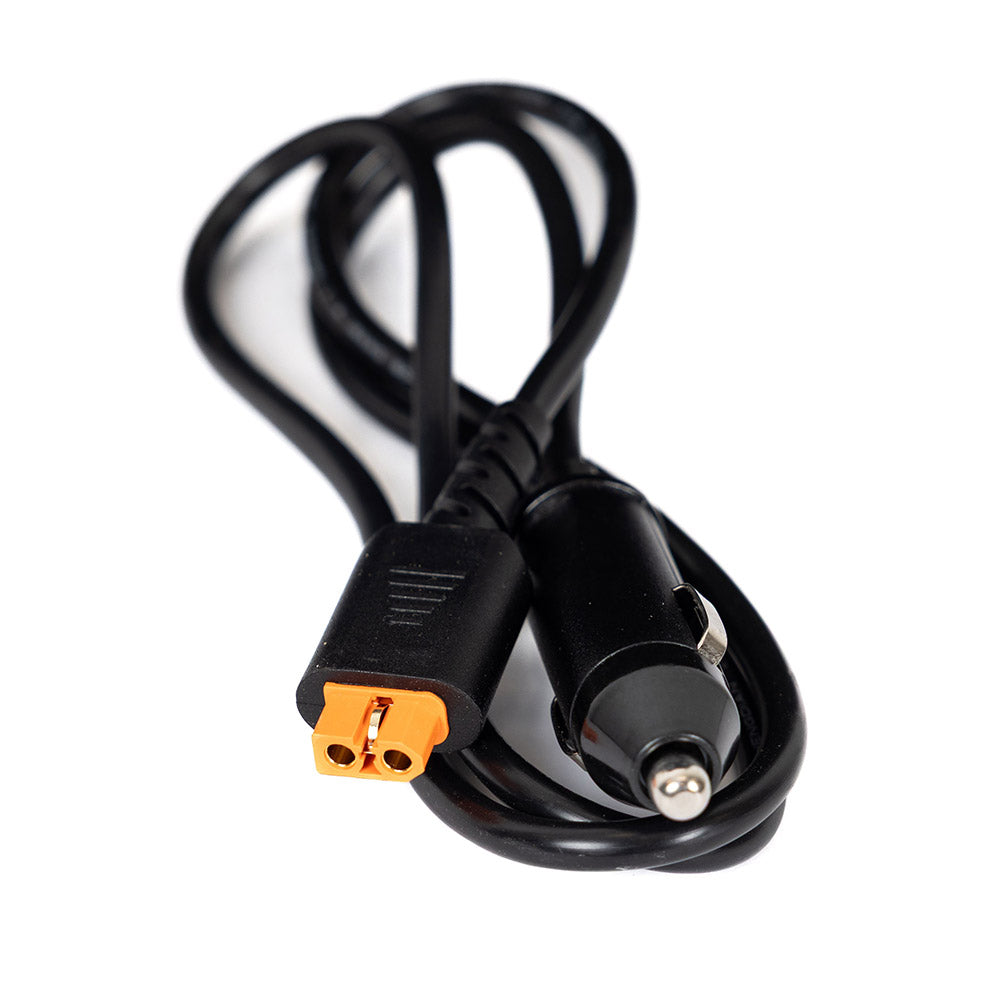

Grid Doctor 3300 XT60-Car Charging Cable Details
- Connects the Grid Doctor 3300 to a 12 Volt "cigarette lighter” vehicle outlet
- Efficiently charges the Grid Doctor 3300
- Rated for 8A at 12V and 10A at 24V
- Connectors: male XT60 connector on one end (connects to the Grid Doctor), and a male “cigarette lighter” connector on the other end (connects to a 12V cigarette lighter port in a vehicle/generator)
- Wire Gauge: 16 AWG
- Length: 46 inches
- Weight: 0.18 lbs

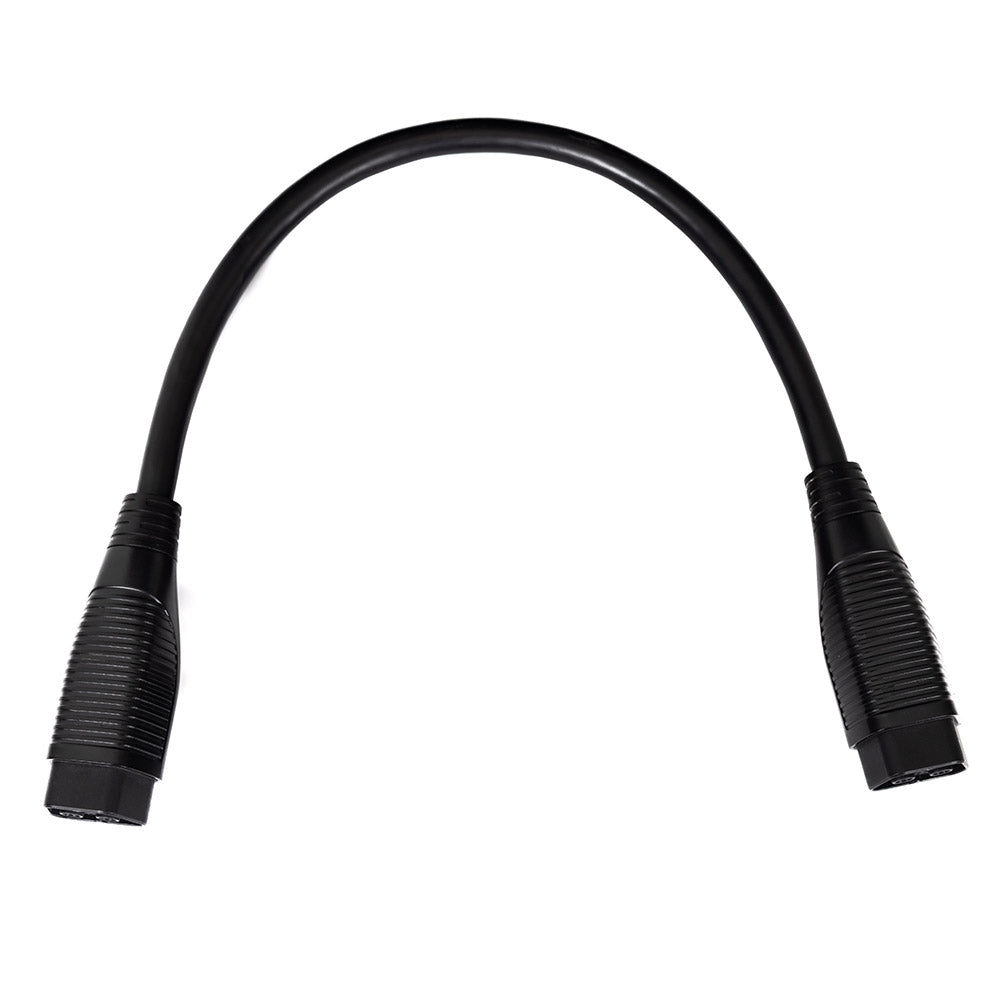

Grid Doctor Smart Expansion Cable Details
- Connects the Grid Doctor 3300 to a 3300XP Expansion Battery
- Can also be used to connect a 3300XP to another 3300XP in a multi-expansion battery setup
- Allows you to expand the power capacity of your system
